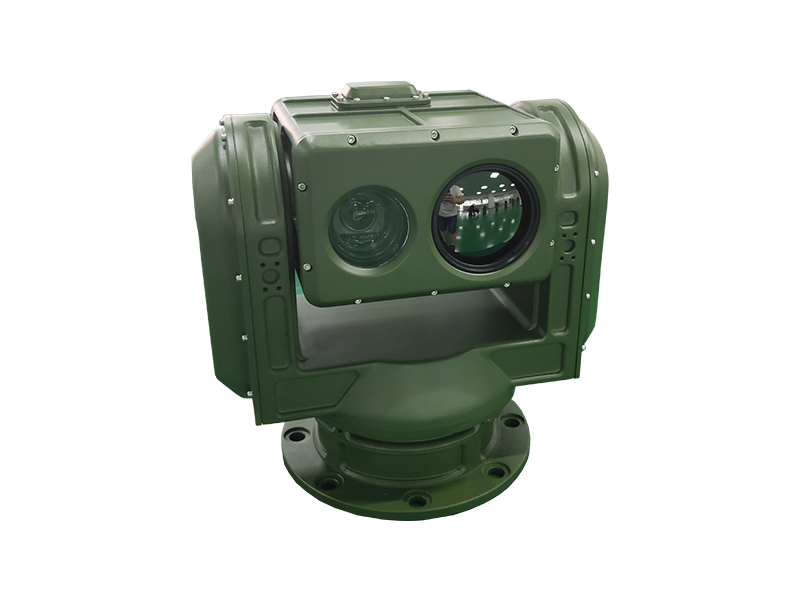

Feature
• Integrate infrared detection system, video recording system, high precision transmission system and gyro image stabilizing system;
• High precision two axis gyro stabilization technology;
• Visible light camera wavelength extend infrared enhancement technology;
• High performance parallel process ability, real-time functional ARM+FPGA hardware process platform;
• Modularization and parallelization real-time embedded system;
• Real-time video OSD;
• High intensity, high precision, super-low resistance design;
• Special reinforced design, rugged structure suitable for vehicle and vessel;
• Low power consumption and heat, stable performance;
Specification
| Distance | Thermal camera |
| Human(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| detection | 2100m | 6000m |
| recognition | 520m | 1500m |
| identification | 260m | 750m |
| Visible | 2000m |
| Platform Type | 2 Axis |
| Rotation range | Horizontal | 360° horizontal rotation |
| Vertical | +90° ~-90° |
| Rotation speed | Orientation and vertical angle speed | 100°/s |
| Orientation and vertical angle accelerated speed | ≥60°/s2 |
| Precision | Stabilization precision | ≤1mrad(RMS) |
| Optical axis overlap ratio | ≤2 pixel |
| Visible CCTV camera | Sensor type | 1/2.8″ CMOS |
| Valid pixel | 2.1 MP |
| Focal length | 7.9~316 mm, 40X optical zoom |
| Iris | F1.8~F6.0 |
| FOV | 41.3°(wide)~2.0°(tele) |
| Focus | auto/manual/zoom trigger |
| Lowest illumination | 0.02Lux/F1.8(color);0.01Lux/F1.8(black&white) |
| White balance | Auto/auto-tracking/indoor/outdoor/trigger/manual |
| SNR | ≥50db |
| Thermal camera | Detector | uncooled microbolometer focal array (Vox) |
| Valid pixel | 640×512 |
| Spectrum range | 8~14μm |
| NETD | ≤50mK@F1.0,300K |
| Focal length | 75 mm |
| FOV | 8.3°×6.2° |
| IFOV | 0.23mrad |
| Frame | 25Hz |
| Image process | 4× digital zoom, pseudo color |
| OSD | real-time video overlay current date, time, longitude, latitude, altitude, speed, pitch angle info, with function of display and blanking overlayed character |
| Interface | Power supply interface | DC(direct current) |
| Others | Ethernet video output |
| Environmental indicators | Operation temperature | -35ºC~+60ºC |
| Storage temperature | -40ºC~+65ºC |
| Protection grade | IP66 |
| Anti-vibration | 10~150Hz, 2g accelerated speed, 3 axial direction sweep frequency 7.5hours |
| Anti-impact | 150m/s², 11ms |
| Power supply | Operation voltage | DC12V~24V |
| Whole consumption | continuous consumption≤55W, Peak consumption≤70W; |
| Others | Weight | ≤16Kg |
| Size | 340×320×240mm |
| Installation way | Base installation |
Assumptions
50% probability of achieving objective at the specified distance given a 2-degree temperature difference and 0.85/km atmospheric attenuation factor. Actual range may vary depending on camera setup, environmental conditions, user experience, and type of monitor or display used.
