Features
• Uncooled microbolometer infrared focal plane arrays, 640*512 pixel with 5X continuous zoom lens
• High sensitivity, NETD at 50mk, 25Hz
• 1080P HD camera with auto focus lens
• High performance video process chip and H.264 video coding, support HD resolution video image
• 360° pan rotating, can realize a full range monitoring and high accuracy position
• Sealed shell, smart shape, nitrogen inside, anti-harsh environment
• Low power consumption, stable performance
Main Technical Indicators
| Monitoring Distance | HD Camera | Day: 6000-8000m |
| Thermal camera | Object | Human（1.8m×0.5m） | Vehicle（2.3m×2.3m） |
| Detection | 5040m | 14400m |
| Recognition | 1260m | 3600m |
| Identification | 630m | 1800m |
| HD Camera Lens | Focal length | 12.5~750mm |
| Iris | F3.8~F22.C |
| Auto iris | DC drive |
| FOV | 28.8°~0.5° |
| Fog penetrating | support |
| Focus control | electronic |
| Focus | Auto/manual |
| Preset | Support lens zoom and focus preset |
| HD Visible Camera | Sensor | 1/1.8''Progressive Scan CMOS |
| Color mode | Integration ICR double filter switch between day and night |
| Color mode | Integration ICR double filter switch between day and night |
| Shutter speed | Auto/manual |
| Fog penetrating | ON/OFF |
| WDR | ON/OFF |
| BLC | ON/OFF and area optional |
| Noise reduction | 3D digital |
| Code type | H.264/MJPEG/MPEG4 |
| Resolution | 1080p， |
| Video rate | 32Kbps~16Mbps |
| Frequency | 50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720) |
| Character adding | Camera number, time, date |
| Image adjustment | Light, contrast, saturation, sharp |
| Thermal Camera | Detector Type | Uncooled FPA, 640*512 pixel |
| Spectrum Range | 8～14μm |
| Lens | 36~180mm |
| FOV | 3.5°×2.6°~17.2°×12.9° |
| IFOV | 0.09~0.47mrad |
| NETD | 50mK@F1.0, 300K |
| Frame | 25Hz |
| Electric Magnification | 4x |
| Lens Control | Electric zoom and focus |
| Image Process | Digital detail enhancement (DDE)，palette |
| Video Output | NTSC/PAL |
| Pan-tilt | Rotating Speed | Pan 0~ 30°/s；Tilt 0°~15°/s |
| Rotating Angle | Pan: 360° ，Tilt: -45～+20° |
| Presetting Bits | 128 |
| Positioning accuracy | ±0.1° |
| Repetition Accuracy | ±0.1° |
| Lens presetting bits | support |
| Auto Cruise | support |
| Protocol | Pelco-D、Pelco-P |
| Baud Rate | 2400/4800/9600/19200 bps optional |
| Operation Temperature | -25℃～+55℃ |
| Storage Temperature | -40℃～+65℃ |
| Bearer Mode | Up load |
| Drive Mode | Worm Gear |
| Interface | Power | DC30V |
| Internet | 1×10Base-T/100Base-TX，RJ45 |
| Shield | Material | High precision aluminum alloy shell |
| Structure | Integration double window |
| Windows Glass | 4mm microcrystal optical window |
| Surface Coating | PTA Tri-proof Coating, Anti-salt water |
| Protection Grade | IP66 |
| Interface | Waterproof aviation plug |
| Environment Indicator | Operation Temperature | -25℃～+55℃ |
| Storage Temperature | -40℃～+65℃ |
| Anti-vibration | 15m/s2 5～200Hz |
| Anti-impact | 150m/s2 11ms |
| Salt Fog Proof | Continuously spraying 48 hours under PH 6.5～7.2 |

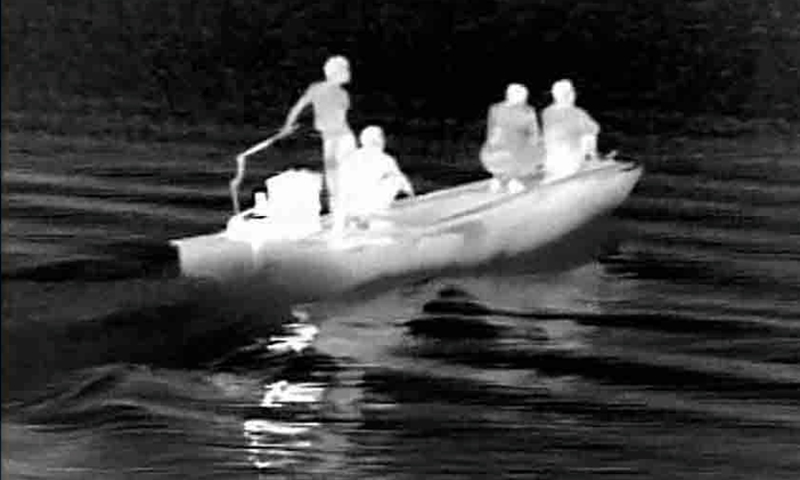

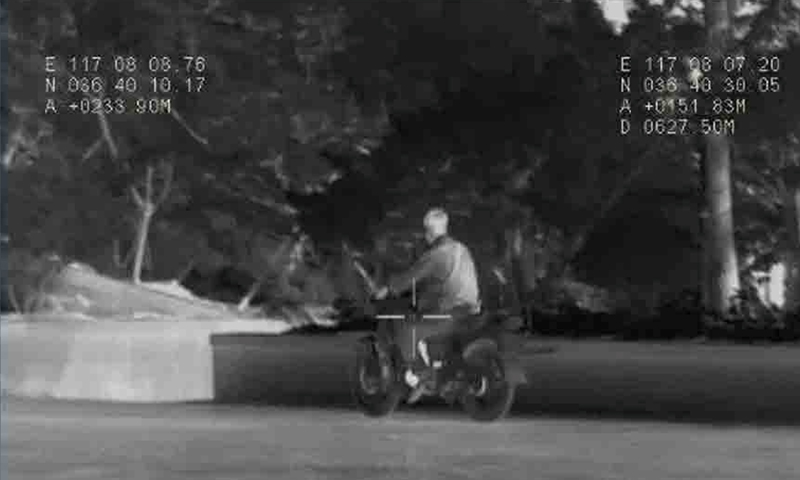

Video Display
