  • FS-TV3120CHR760-LRF20-HD
  • FS-TV3120CHR760-LRF20-HD

›

Model No：

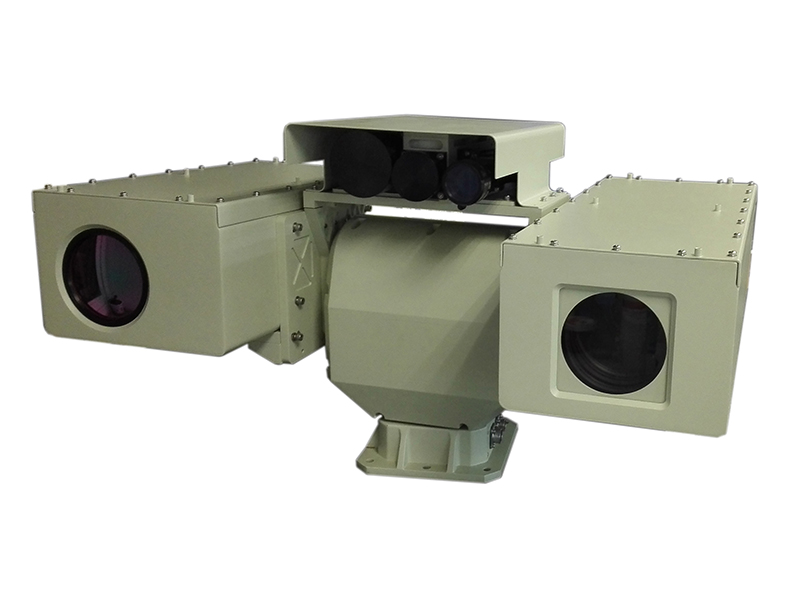

FS-TV3120CHR760-LRF20-HD

Categories：

Cooled Thermal Camera System
INQUIRY
CONTACT
PRODUCT DESCRIPTION

Features

• Adopts visible camera and thermal camera integrating system, realizing 24 hour surveillance

• 15µm 640×512 HgCdTe cooled thermal detector with first 50～750mm continuous zoom lens.Search detection in wide field of view mode, narrow field goal of pattern recognition

• DDE technology

• Day camera adopt 750mm hd fog lens with 2x can reach 1500mm

• Support visible lens, sending back position, focal length and focus position

• 20Km laser rang finder

• Protection IP66


Tech Data

DistanceVisible camera8-10km
Thermal cameraTargetHuman (1.8m×0.5m)Vehicle(2.3m×2.3m)
Detect1640020000
Recognize770013500
Identify43009000
Day Camera LensFocal length12.5~750mm,2x 1500mm
FOV28.8°~0.5°
Fog penetratingSupport
Focus controlElectronic
FocusAuto/manual
HDCameraSensor1/1.8''Progressive Scan CMOS
Color modeIntegration ICR double filter switch between day and night
Shutter speedAuto/manual
Back focus adjusting techSupport, remote control
Noise reduction3D digital
Code typeH.264/MJPEG/MPEG4
Resolution1080p
Video rate32Kbps~16Mbps
Frequency50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)
Thermal camera lensFocal length50mm～750mm
FOV0.7°×0.6°～11.0°×8.8°
IFOV0.02~0.30mrad
Lens ControlElectronic zoom/focus,Auto focus
Thermal camera SensorSensor typeStirling cooling type Cooled focal plane detector
Pixel640×512
Spectrum3.7～4.8μm
NETD≤25mK,300K
Frequency25HZ
Image dealingDDE
Laser RangefinderLaser wavelength1570nm
Distance range200-20000m
Distance precision±3m
Refresh rate0.2Hz
Accuracy≥95%
PantiltPan angle360°, continuous rotation
Tilt angle-45°~+45°
Pan speed0.1°~ 12°/s
Tilt speed0.1°~8°/s
Preset255
Preset precision±0.1°
InterfacePower interfaceDC30V
Network interface1×10Base-T/100Base-TX RJ45
Environmental indicatorsWorking temperature-25℃~+55℃
Storage temperature-40℃~+65℃
ProtectionIP66
Anti-salt fogComply with GB/T2423.17-2008
Power supplyPower supplyDC30V, equipped with AC220V～DC30V/10A wide range water-proof power adapter
Power consumption≤150W
Physical featuresWeight≤80kg
InstallationOutdoor pedestal mounted
