Model No：

FS-SP50 seires

Categories：

Heavy-duty Pan tilt

PRODUCT DESCRIPTION

• Max Load:35kg/50kg

• Support RS485(or RS422 or RS232 optional)

• Support kinds of Lens preset with self-adaptive function

• High resetting accuracy, up to ±0.1º

• Adopt die-cast aluminum alloy material

• Adopt high-precision, high-strength steel worm-gear driven, self-locked when power is off

• Pan:0~360º continuous

• Protection Class: IP66

• Support OSD Menu (optional)

• Support returning data of pan tilt position, focal length, focus etc

Model	FS-SP5035		FS-SP5050
Pan/tilt Speed	Pan:0.01º~20º/s,Tilt:0.01º~10º/s		Pan:0.01º~12º/s,Tilt:0.01º~8º/s
Rotation Angle	Pan:0°～360º continuous,Tilt:+45º~-45º
Number of Presets	200
Preset Positioning Accuracy	±0.1º
Function	Pan tilt position data, focal length etc.
Auxiliary Switch	2 groups
Lens Preset	Support,with self-adaptive function
Lens control speed	Speed of zoom/focus can be adjustable continuously
Auto Cruising	8 tracks( each with 10 presets)
Homing	It can be set up within the scope of 1~60 min
Auto Scan	1 path
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps
Interface	RS485 or RS422
Input Voltage	AC24V±20%,50/60HZ;DC28V±20%
Power Consumption	≤80W
Operation Temperature	Temp:-25℃~+65℃,Humidity:90%±3% RH; -40℃~+65℃(without condensation)
Storage Temperature	-40℃~+70℃
Max Load	35 kg	50 kg
Load Mode	Top-mounted/side-mounted
Driven	Worm-gear driven
Protection Class	IP66
Weight	23 kg

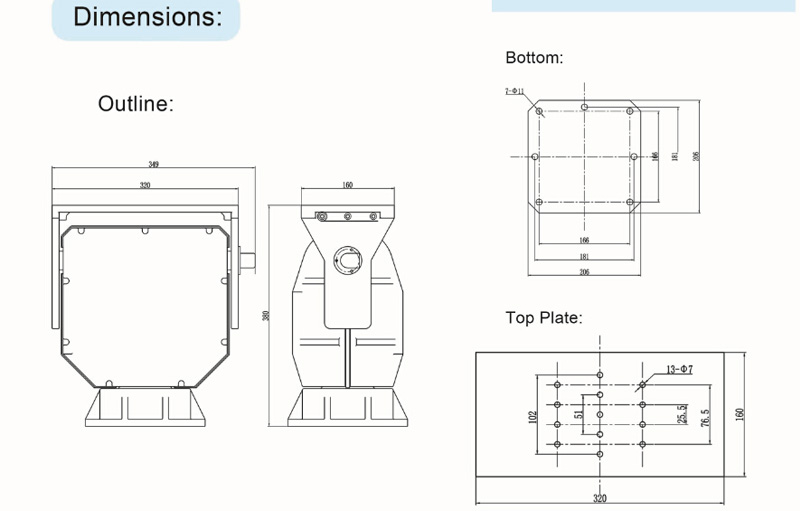

Dimensions	350mm206mm380mm(LWH)
