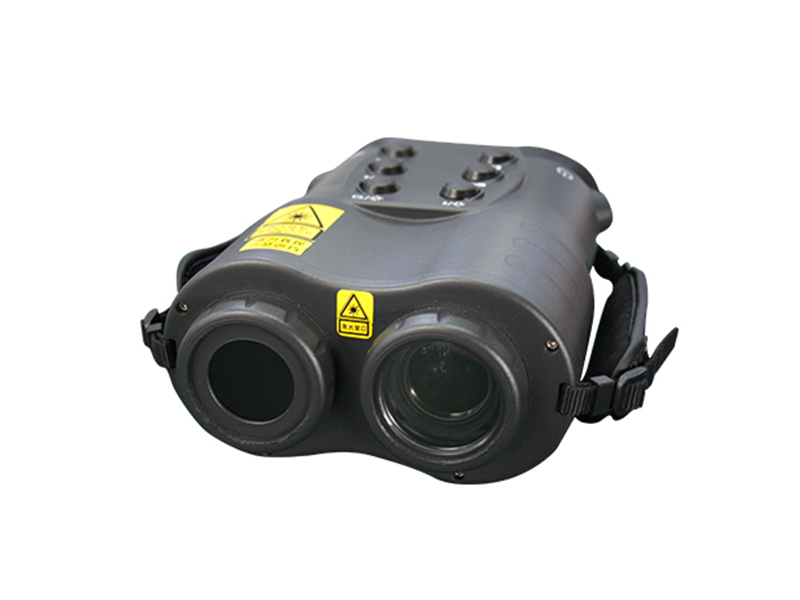

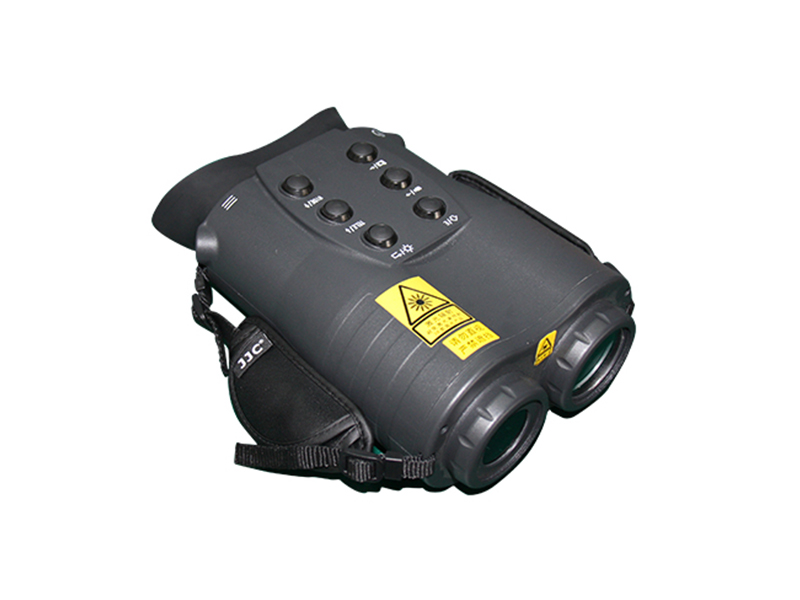

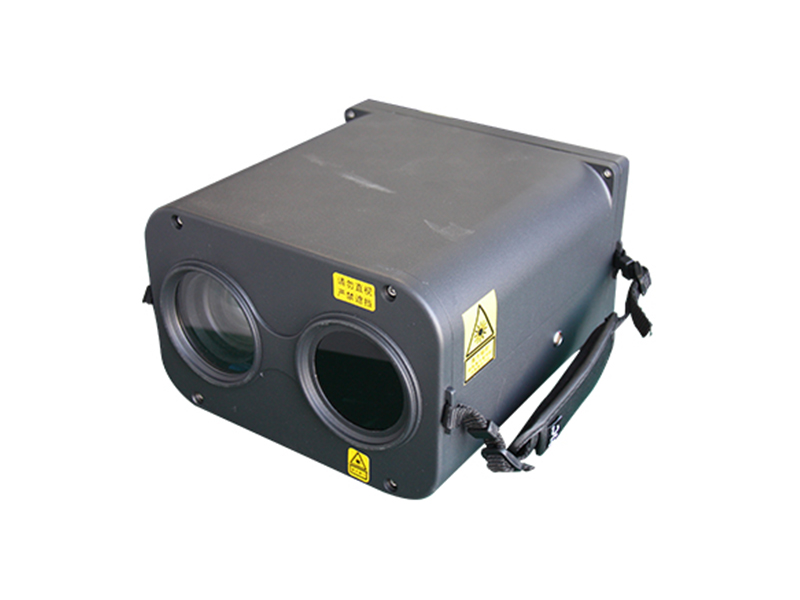

Model No:

FS-PHLVR&PHLVR1000

Categories:

Thermal Binocular Camera
PRODUCT DESCRIPTION

Product Feature

• Not easy to be detected by using a non-infrared exposure laser illuminator.

• Day and night low illuminance high definition integrated camera, day and night continuous monitoring

• Large angle synchronous zoom laser lighting design, fully meet the demand of handheld devices

• High resolution binocular, better visual effects.

• 32G large capacity SD card, fully meet the demand of handheld devices

• High performance digital processor with high efficiency H264 compression algorithm, video is clear, real-time and smooth

• Export video and picture files to PC via USB cable connection.

• It has the function of video recording and capturing, so as to obtain evidence in real time

• Support local video, image file playback

• Built-in 5200mAH large capacity, rechargeable lithium battery, long working hours

• The ergonomic shell design, beautiful appearance, comfortable holding, small size.


Technical Specification

ModelPHLVRPHLVR1000
Monitoring distanceNight vision300m1000m
Day vision600m2000m
CameraSensor type1.3 MP  1/3" Progressive Scan CMOS
Focus length4.7mm~94mm8mm~300mm
Optical zoom20x optical zoom38x optical zoom
Resolution1280 × 7201920 × 1080
Lens controlAuto focus
Video CodingVideo formatASF
Video resolution1280 × 7201920 × 1080
Picture formatJPEG
Picture resolution1280 × 7201920 × 1080
DisplayBinocularResolution 640×480Resolution 800×600
StorageStorage capacity32G
Storage timeAbout 10 hours
InterfacePower supply inputDC12V
USB exportGeneral USB2.0, exporting video and picture to computer
Video output1 PAL video output
RS485External RS485 controller
Environment IndexWorking temp-10℃ ~ +50℃
Storage temp-20℃ ~ +65℃
Power SupplyPower supplyBuilt-in lithium battery
Power consumption≤20W
Battery lifeLaser on about 3 hours, laser off about 4 hours
Physical FeaturesWeight2 kg3.75 kg
Size204mm × 160mm × 90mm230mm × 210mm × 136mm
Installation methodTripod mounting, 1/4" mounting holeTripod mounting, 1/4"-20 mounting hole
