Features
• High resolution uncooled microbolometer infrared focal plane arrays,vox
• 17 µm pixel,image quality fine,observe small target more clearly,further detection distance
• High sensitivity, NETD can reach 50mk and frame at 25Hz
• Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color
• Low power consumption, quick start-up, stable performance, image clearly with high uniformity
• IP output
• Simple operation, easy to use and maintain
• Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment, overlength working lifetime
Technical Data

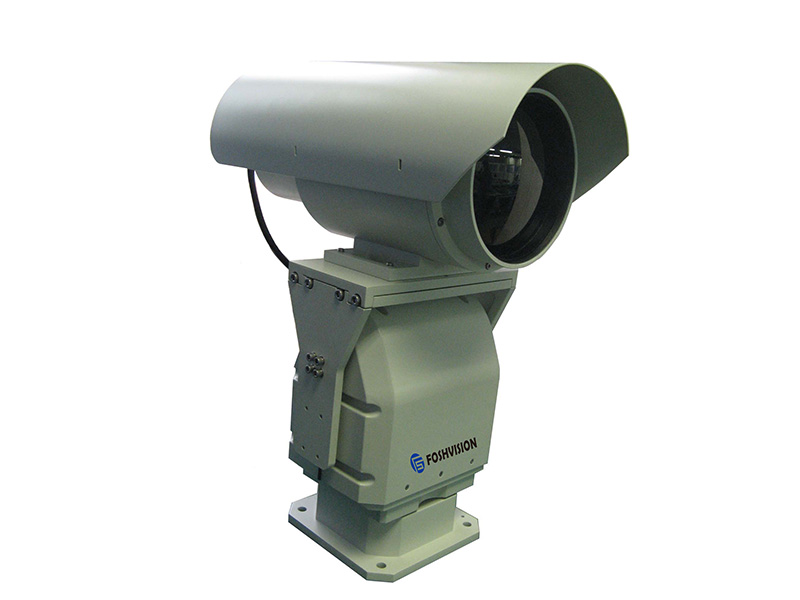

| Model | FS-UHR114 | FS-UHR165 |
| Monitoring distance | Object | Human (1.8m×0.5m) | Vehicle (2.3m×2.3m) | Human (1.8m×0.5m) | Vehicle (2.3m×2.3m) |
| Detection | 2800m | 8000m | 4200m | 12000m |
| Recognition | 930m | 2000m | 1390m | 3000m |
| Identification | 460m | 1000m | 700m | 1500m |
| Detector | Detector type | Uncooled microbolometer FPA detector (vox) |
| Resolution | 640×480 |
| Spectrum | 8~ 14μm |
| NETD | ≤ 50mK |
| Frame rate | 25Hz |
| NUC | Auto/ manual/ background correction |
| Image process | DDE, pseudo color |
| Thermal lens | Focal length | 25～100mm, 4x optical zoom | 30~ 150mm, 5x optical zoom |
| FOV | 6.2°×5.0°～24.6°×19.8° | 4.2°×3.3° ~ 20.6°×16.5° |
| F value | 1.0 | F 1.0-1.2 |
| Lens control | E-zoom, E-focus, auto focus |
| Pan-tilt | Rotate angle | Pan: 0°~ 360°; Tilt: +20°~ -60° |
| Rotate speed | Pan: 0.1°/s ~ 9°/s; Tilt: 0.1°/s ~ 4°/s |
| Preset | 200 |
| Auto cruise | 8 paths, each has 10 presets |
| Interface | Power supply interface | DC30V |
| Control interface | 1×10Base-T/100Base-TX, RJ45 |
| Environment indicators | Working temperature | -25℃ ~ +55℃ |
| Storage temperature | -40℃ ~ +65℃ |
| Protection | IP66 |
| Anti-vibration | GB/T 4857.10-2005 |
| Anti-impact | GB/T 15412-94 Free drop test method |
| Anti-thunder | 2000V |
| Power supply | Power supply | DC30V(equip with width input power adapter) |
| Power consumption | ≤80W |
| Physical features | Weight | ≤ 14Kg | ≤ 15Kg |
| Size(L×W×H, including sunshield cover) | 390mm×174mm×488mm | 400mm×202mm×515mm |
| Installation | Outdoor based installation |
