Features
• Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
• Infrared detector with high temp sensitivity, with min temp resolution of 50mK
• Day and night 2 megapixels low illuminating color camera, realizing day and night continuous monitoring
• Support auto focusing function, realizing multiple focusing mode and triggering mode
• Support focus presetting function, remembering FOV of each preset bit, enhancing working efficiency
• Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain
Technical Data

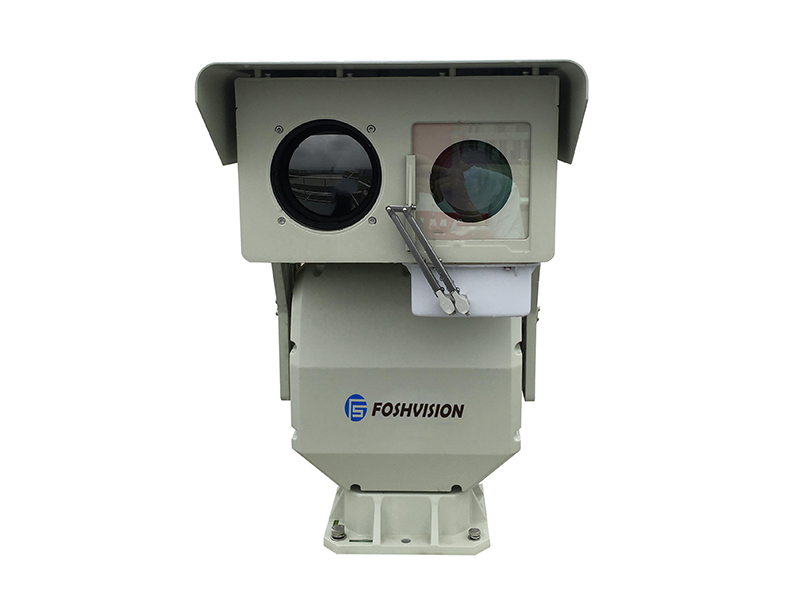

| Model | FS-UL1120LR114 |
| Monitoring distance | Day Camera | Day vision | 2000m |
| Thermal Camera | Object | Human(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| Detection distance | 2800m | 8000m |
| Recognition distance | 700m | 2000m |
| Identification distance | 350m | 1000m |
| Thermal lens | Focal length | 25～100mm, 4× continuous optical zoom |
| FOV | 6.2°×4.7°～21.7°×16.4° |
| F value | F1.0 |
| Lens control | electric zooming, electric focus, auto focus |
| Focus presets | support |
| Thermal Detector | Detector type | uncooled microbolometer focal plane array（VOX） |
| Resolution | 640×512 |
| Spectral range | 8～14μm |
| NETD | ≤50mK@F1.0,300K |
| Image processing | DDE, pseudo color |
| HD day camera lens | Focal length | 8～320mm, 40×optical zoom |
| FOV | 1.2°~38.5° |
| Auto focusing | support |
| Focus presets | support |
| HD Camera(with wiper) | Sensor type | 1/2.8” Progressive Scan CMOS |
| Code | H.264/H.265 |
| Video resolution | 1080P, supporting three stream |
| Video frame rate | 1～25f/s（50Hz）,1～30f/s（60Hz） |
| Fog penetration | support |
| Laser Illuminator | Illuminating lens | 60X zooming laser telephoto lens |
| Power | 10W |
| Wave length | 810nm |
| Illuminating angle | 0.5°～30°continuous changing |
| Pan-tilt | Carrying capacity | 20kg (top load) |
| Angle | Horizontal 360°continuous, pitching:+20°～-60°, +45°～-45° optional |
| speed | Horizontal 0.01°～20°/s, pitching 0.01°～10°/s |
| Preset | 255 |
| Cruising | 2 paths, 64 bits each path |
| Anti-lightning | 2000V |
| Interface | Power supply | DC30V |
| Network interface | 1×10Base-T/100Base-TX,RJ45 |
| Environment indicators | Working temp | -25℃～+55℃ |
| Storage temp | -40℃～+65℃ |
| Protection grade | IP66 |
| Power | Power supply | Wide range input, AC90～305V to DC30V waterproof power |
| Power consumption | ≤120W |
